45060- Evenheat - V8 Vitrigraph Multi-Purpose Kiln

**SPECIAL ORDER ONLY**
Contact us at info@rainbowartglass.com for more details.

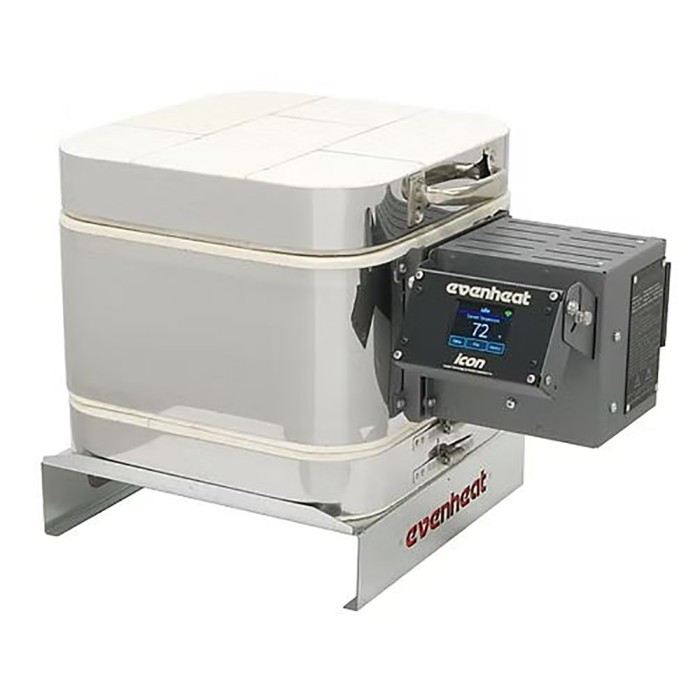

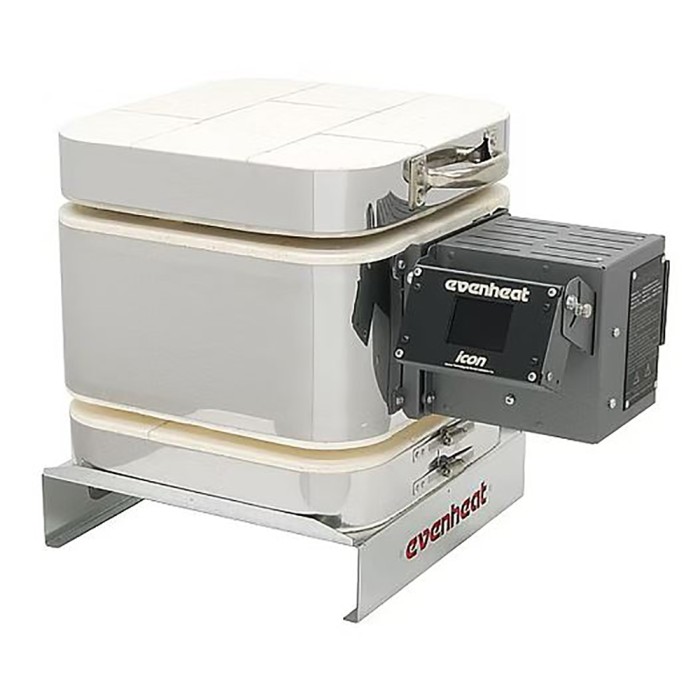

Capable of all firing work including use as a ceramic test unit, glass firing, metal clays as well as china and porcelain. The Evenheat V8 was designed specifically as a vitrigraph kiln with features not found anywhere else.

​Vitrigraph is a term used to describe the process of heating glass to a molten state and allowing it to exit the floor of the kiln where it is collected and manipulated by the user. To accomplish this, a vitrigraph kiln is elevated to a point where the user has open and easy access to the glass exiting the kiln bottom.

The V8 is built with an 8" x 8" chamber that positions the thermocouple out of the way so pots as large as 7-1/2" in diameter can be used. The glass exit point is sized for reliable and easy access to pull cane. Controls are placed in a pivoting enclosure which allows the user to rotate the control up and down for perfect viewing whether you're down-low, in the middle, or up-high.

Features:

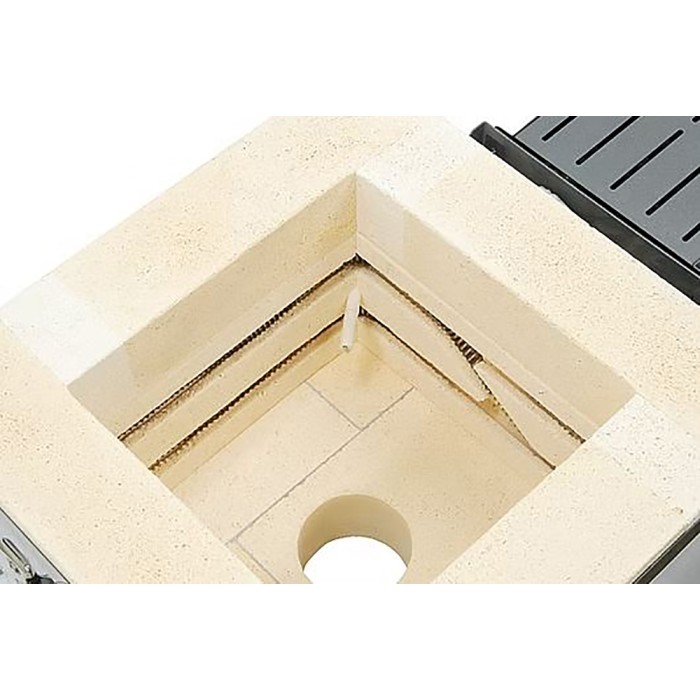

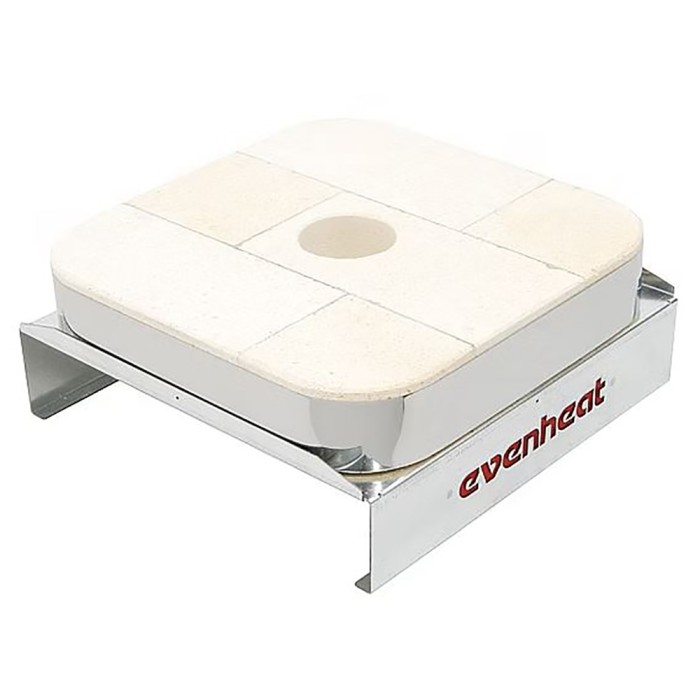

- Floor includes a large 2-3/4" hole machined into the base that acts as a glass exit point for vitrigraph work leaving plenty of room for tools.
- Accepts vitrigraph pots up to 7-1/2" diameter which allows for more volume per firing.
- 3 Piece Stackable Design allows for easy storage and assembly within minutes.

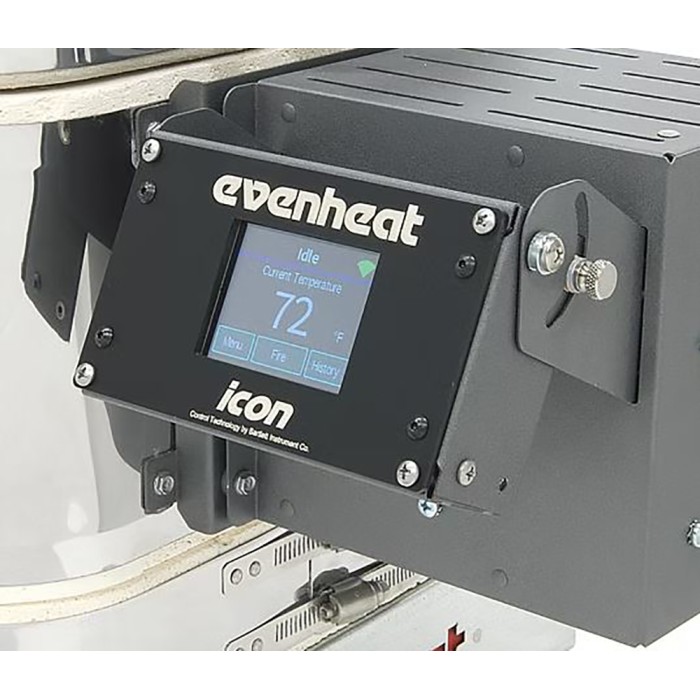

- Swing View Controller holster can pivot, swing-up/down for easy viewing & programming.
- Quiet Drive Solid State Relay provides consistent temperature control, high reliability, and increased element life.
- Optional Stands (Sold Separately) are available which offers 14.5"-37.5" of distance for pulling cane & other projects.

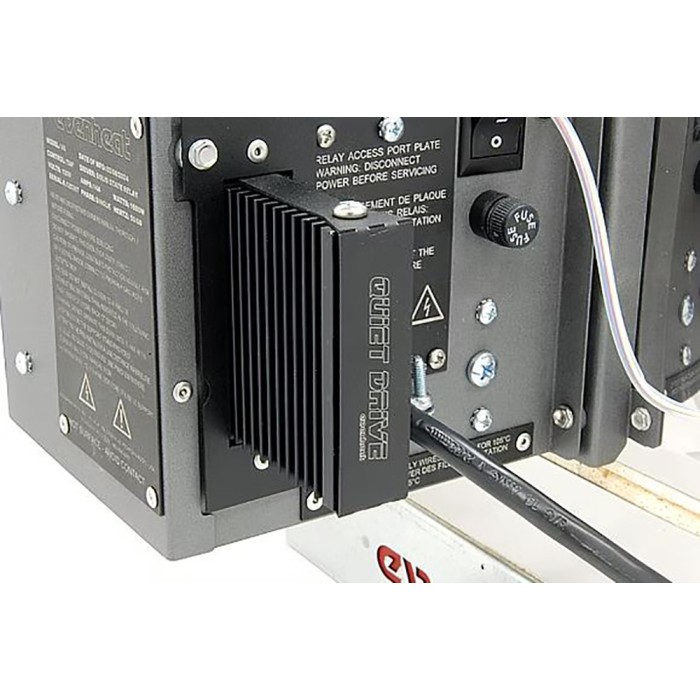

- Easy Relay access port allows for simple relay replacements when necessary.
- Firebrick Construction allows for easy and inexpensive repairs.
- Comes with a Standard 120V Plug that fits into any standard Household or Shop Electrical Socket.
- Great for fusing, slumping, painting and casting glass. Works well for other traditional firing styles – low fire chemicals, metal clay, enamels and china painting.

Controller: Icon Touchscreen Programmable (Icon+, Tap II, & Rampmaster 3 are also available at an additional cost)
Furniture Kit: Contact us for available options.

Firing Chamber: 8"L x 8"W x 6.5"D (0.24 Cubic Feet)
Overall Dimensions: 13"L x 18"W x 14.5"H
Max Temp: 2300^oF (1260°C)
Volts: 120. (Also available in 100V - 240V)
Phase: Single
Amps: 14.
Watts: 1680.
Hertz: 50/60
Power Cord: NEMA 5-15
Warranty: 2 Year Limited.
Weight: 35lbs.
UPS/FedEx-able
